FEATURES:

• CS8900A-CQ3 Ethernet controller
• LAN transformer and RJ45 connector
• two status LEDs for LAN and LINK
• allows 8/16 bit data transfer and easy interface to any microcontroller
• supports interrupts
• 0.1" row pins header
• PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• Dimensions: 53x29 mm (2.075x1.15")
• space between the pin rows: 25.4 mm (1")

• CS8900A-H.pdf

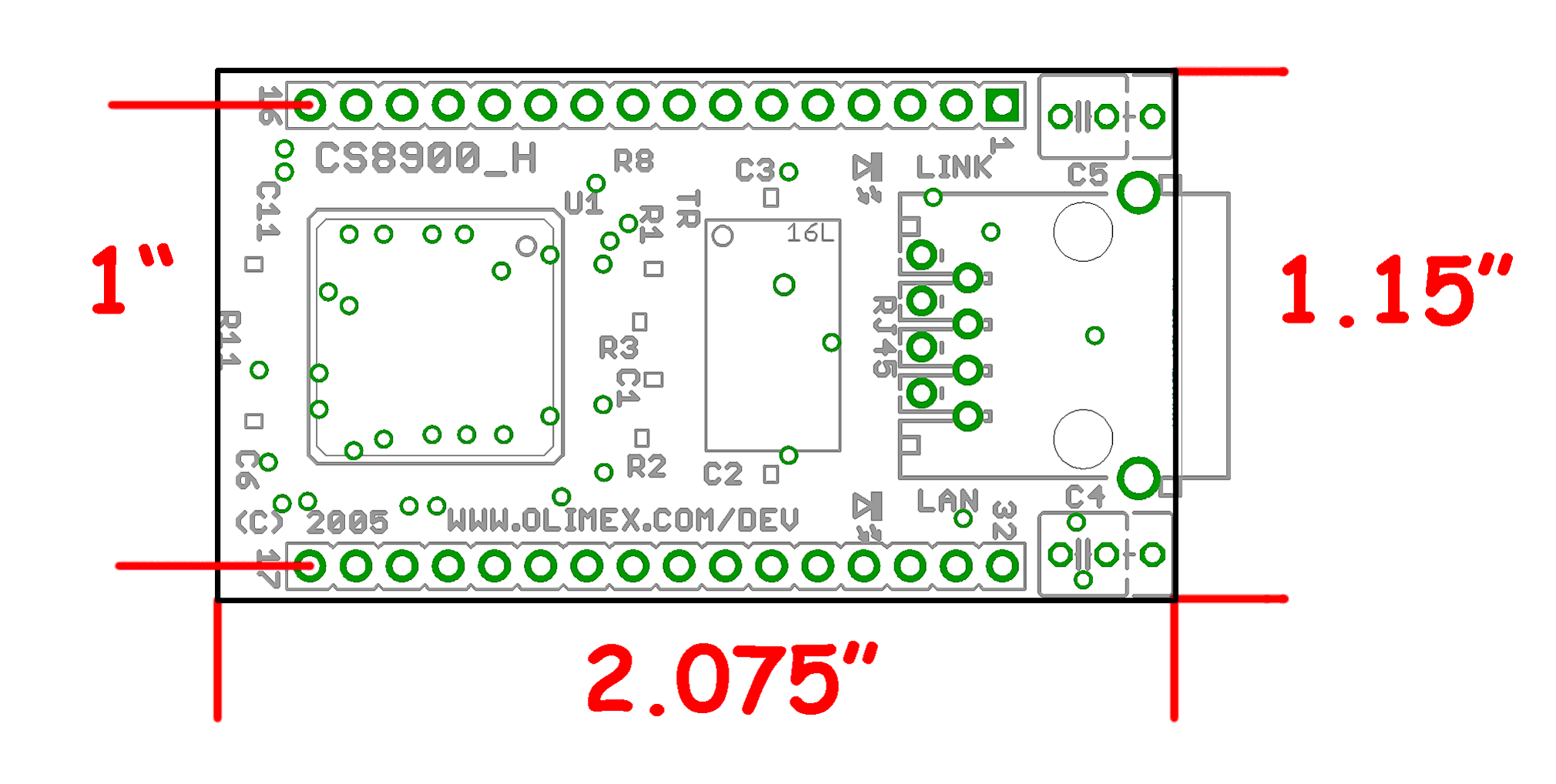

• CS8900A-H dimensions

• CS8900A-H schematic REV.B

• check our MSP430-EasyWeb and LPC-E212x pages for code which interface CS8900 to MSP430 and LPC ARM microcontrollers
• Sample code for 16 bit interfacing CS8900A-H to MSP430F149 and the wiring schematic

ORDERING CODES:
		CS8900A-H Completely assembled and tested, includes CS8900A-CQ3 Ethernet controller
