INTRODUCTION:

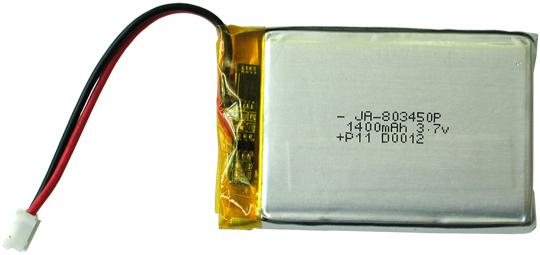

This is rechargable Li-Po high discharge current battery with JST connector ready to plug to OLIMEXINO-328, OLIMEXINO-STM32, PIC32-PINGUINO, PIC32-PINGUINO-OTG, DUINOMITE and DUINOMITE-MEGA. The battery have overcharge and short circuit protection.

FEATURES:

• Charge voltage 4.2V, nominal voltage 3.7V, cut-off voltage 3.0V
• Max charge current 700mAh
• Max discharge current 1400mAh
• Impedance 60mOhm at 1KHz
• Operating temperature: at charge 0-55C, at discharge -25C+60C
• Capacity loss after 500 cycles full charge/discharge at 20C: 20%
• Dimensions 50x34x8mm

ORDERING CODES:
		BATTERY-LIPO1400MAH -LIPO rechargable battery 3.7V/1400mAh
