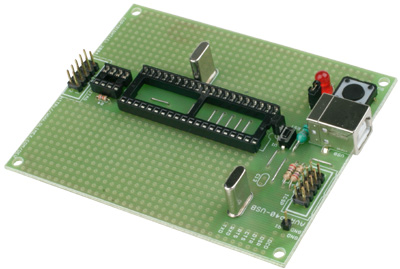

FEATURES

• Supports all devices which are pin to pin compatible with AT90S8535 AVR microcontrollers
• ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
• JTAG port 5x2 for in-circuit debugging/programming with AVR-JTAG and AVR-JTAG-USB (ATJTAGICE)
• USB to RS232 FT232 converter
• I2C EEPROM socket
• takes power from USB no need for external adapter
• power supply filtering capacitors
• Quartz crystall oscilator circuit 8Mhz
• reset IC ZM33064
• reset button
• general purpose push button
• status LED connected to PB0 via removable jumper
• DIL40 microcontroller socket
• extension pin headers for each uC pin
• four mounting holes 3.3 mm (0.13")
• Grid 100 mils
• GND bus
• Vcc bus
• FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• dimensions 100x80 mm (3.9x3.15")

DOCUMENTS:

• AVR-P40-USB user manual

HARDWARE:

• Schematic REV-A
• AVR ICSP connector (top view)
• AVRJTAG connector (top view)

SOFTWARE:

• AVR-P40-USB + ATMega16 blink LED demo code (C source and HEX)
• AVR-P40-USB + ATMega16 button demo code (C source and HEX)
• AVR-P40-USB + ATMega16 UART demo code (C source and HEX)

PROJECTS/REVIEW:

• Setup AVR and linux

ORDERING CODES:
		AVR-P40-USB-8535-8MHz - assembled and tested board with 8Mhz oscillator
