AVR-P40-8515 AVR MICROCONTROLLER PROTOTYPE BOARD WITH STKxxx COMPATIBLE 10 PIN ICSP

FEATURES:

• ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
• Voltage regulator +5V, 7805 and filtering capacitors
• Quartz crystall oscilator circuit 8Mhz
• reset IC ZM33064
• status LED connected to PB0 via removable jumper
• Power plug-in jack
• DIL40 microcontroller socket
• RS232 DB9 female connector
• RS232 MAX232 interface circuit with Tx, Rx, CTS, DTR/RTS signals
• Extension slot on every uC pin
• Grid 100 mils
• GND bus
• Vcc bus
• FR-4, 1.5 mm (0.062"), green soldermask, white silkscreen component print
• four mounting holes 3.3 mm (0.13")
• dimensions 100x80 mm (3.9x3.15")

DOCUMENTS:

• AVR-P40-8515.pdf

HARDWARE:

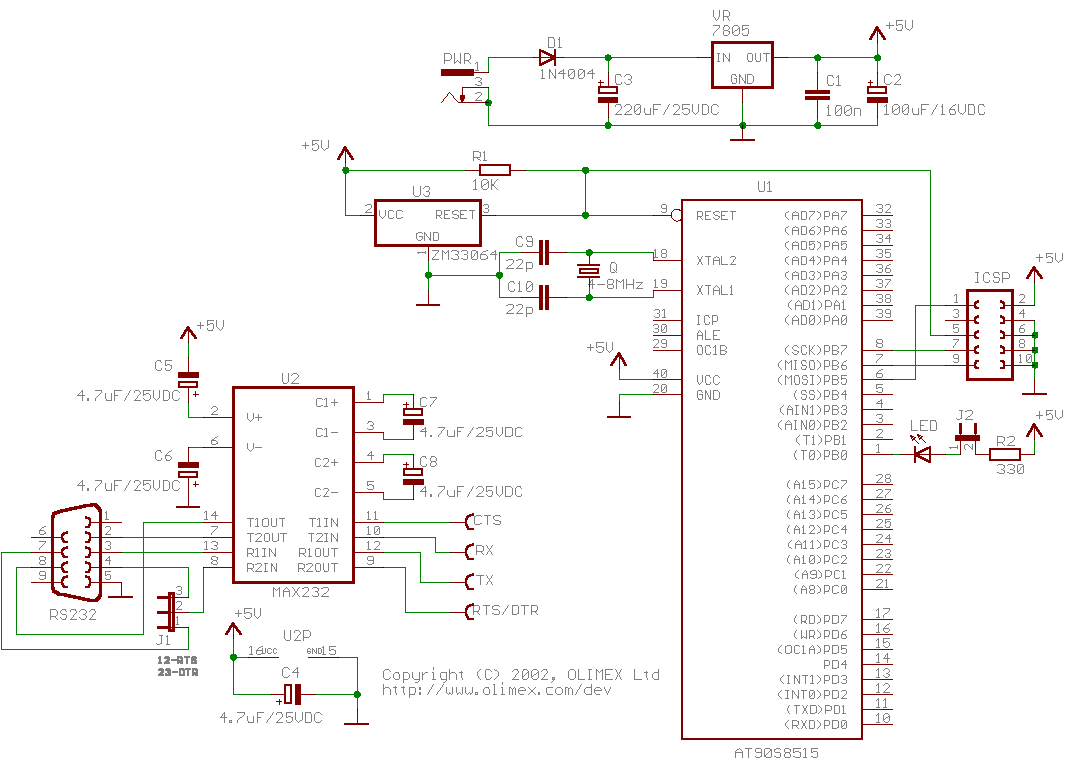

• AVR-P40-8515 schematic
• AVR-P40-8515 ICSP connector

• AVR-P40-8515 + AT90S8515 blink LED demo code (C source and HEX)
• AVR-P40-8515 + AT90S8515 UART demo code (C source and HEX)

ORDERING CODES:
		AVR-P40-8515-8MHz completely assembled and tested with 8Mhz oscillator
		AVR-P40-8515/PCB ONLY
