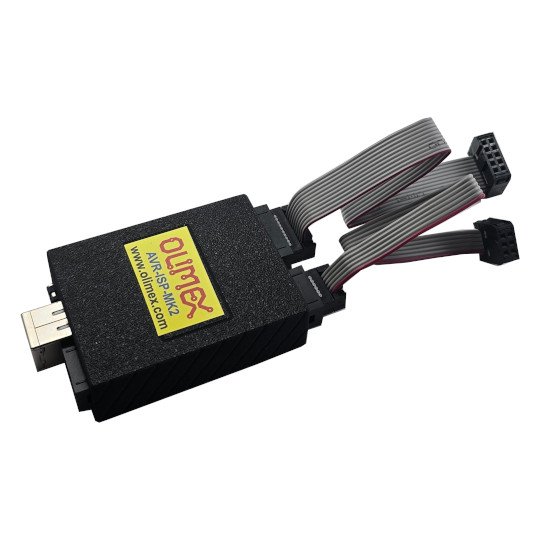

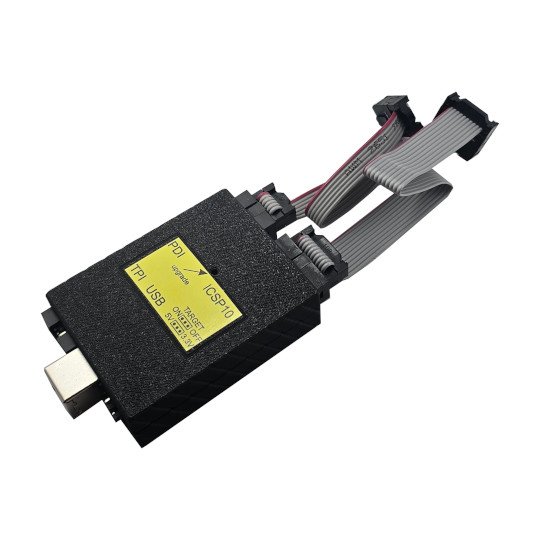

AVR-ISP-MK2- USB AVR ISP MKII COMPATIBLE AVR PROGRAMMER WITH ICSP PDI TPI SUPPORT

INFO:

AVR-ISP-MK2 support programming of Atmel 8-bit AVR microcontrollers with ISP, PDI or TPI interfaces. Using the AVR Studio® software, designers can program tinyAVR and megaAVR devices using the ISP Interface, tinyAVR devices using the TPI interface, and AVR XMEGA devices using the PDI Interface. The AVR Studio online-help contains the most current information and a complete list of supported devices.

FEATURES

• connects to PC via USB 2.0 Full speed
• no need for external power supply as it takes the power supply from USB
• uses Atmel's 2x5 pin ICSP and 2x3 pin PDI and TPI connector layout
• works with 5V and 3.3V targets (selectable) and can supply target with power
• Programs both flash and EEPROM
• Supports fuses and lock bit programming
• Upgradeable for future device support
• Supports target voltages from 1.8V to 5.5V
• Adjustable ISP programming speed (50Hz to 8MHz SCK frequency)

• dimensions 45x30 mm (1.7x1.2") + 20 cm (8") cable


SUPPORTED DEVICES:

• XMEGA Devices: ATxmega16A4U, ATxmega32A4U, ATxmega64A3U, ATxmega128A3U, ATxmega192A3U, ATxmega256A3U, ATxmega256A3BU, ATxmega64B3, ATxmega128B3, ATxmega64B1, ATxmega128B1, ATxmega16A4, ATxmega32A4, ATxmega64A4U, ATxmega128A4U, ATxmega64A3, ATxmega128A3, ATxmega192A3, ATxmega256A3, ATxmega256A3B, ATxmega64A1, ATxmega128A1, ATxmega16D4, ATxmega32D4, ATxmega64D4, ATxmega128D4, ATxmega64D3, ATxmega128D3, ATxmega192D3, ATxmega256D3
• MegaAVR Devices: ATmega48, ATmega48A, ATmega48P, ATmega48PA, ATmega8, ATmega8515, ATmega8535, ATmega88, ATmega88A, ATmega88P, ATmega88PA, ATmega8A, ATmega16, ATmega162, ATmega164A, ATmega164P, ATmega164PA, ATmega165P,ATmega165PA, ATmega168, ATmega168A, ATmega168P, ATmega168PA, ATmega16A, ATmega32, ATmega324A, ATmega324P, ATmega324PA, ATmega325, ATmega3250, ATmega3250A, ATmega3250P, ATmega325A, ATmega325P, ATmega325PA, ATmega328, ATmega328P, ATmega32A, ATmega64, ATmega640, ATmega644, ATmega644A, ATmega644P, ATmega644PA, ATmega645, ATmega6450, ATmega6450A, ATmega6450P, ATmega645A, ATmega645P, ATmega64A, ATmega128, ATmega1280, ATmega1281, ATmega1284, ATmega1284P, ATmega128A, ATmega2560, ATmega2561, AT90CAN128, AT90CAN32, AT90CAN64, ATmega16M1, ATmega32M1, ATmega64M1, AT90PWM1, AT90PWM161, AT90PWM216, AT90PWM2B, AT90PWM316, AT90PWM3B, AT90PWM81, AT90USB1286, AT90USB1287, AT90USB162, AT90USB646, AT90USB647, AT90USB82, ATmega16U2, ATmega16U4, ATmega32U2, ATmega32U4, ATmega8U2, ATmega169A, ATmega169P, ATmega169PA, ATmega329, ATmega3290, ATmega3290A, ATmega3290P, ATmega329A, ATmega329P, ATmega329PA, ATmega649, ATmega6490, ATmega6490A, ATmega6490P, ATmega649A, ATmega649P
• tinyAVR Device: ATtiny4, ATtiny5, ATtiny9, ATtiny10, ATtiny13A, ATtiny13, ATtiny20, ATtiny40, ATtiny24A, ATtiny24, ATtiny44A, ATtiny44, ATtiny84A, ATtiny84, ATtiny25, ATtiny45, ATtiny85, ATtiny261A, ATtiny261, ATtiny461A, ATtiny461, ATtiny861A, ATtiny861, ATtiny26, ATtiny2313A, ATtiny2313, ATtiny4313, ATtiny43U, ATtiny28L, ATtiny48, ATtiny88, ATtiny87, ATtiny167
• Automotive AVR Devices: AT32UC3C0512C, AT32UC3C1512C, AT32UC3C2512C, ATtiny24, ATtiny44, ATtiny84, ATtiny25, ATtiny45, ATtiny85, ATtiny87, ATtiny88, ATtiny167, ATtiny261, ATtiny461, ATtiny861, ATmega48 , ATmega88 , ATmega168, ATmega328P, AT90CAN32 , AT90CAN64, AT90CAN128, ATmega32C1, ATmega64C1, ATmega16M1, ATmega32M1, ATmega64M1, ATmega164P, ATmega324P, ATmega644P, ATmega169P, ATmega48PA, ATmega88PA, ATmega168PA

DOCUMENTS:

• AVR-ISP-MK2 users manual

HARDWARE:

• AVR ICSP 10 pin connector (top view)
• AVR TPI 6 pin connector (top view)
• AVR PDI 6 pin connector (top view)

SOFTWARE:

• AVR Studio
• AVR Dude

ORDERING CODES:
		AVR-ISP-MK2 completely assembled and tested
