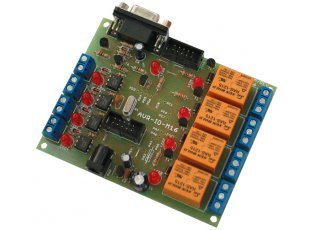

AVR-IO-M16 DEVELOPMENT BOARD WITH ATMEGA16
4 RELAYS OUTPUTS 4 OPTOISOLATED INPUTS
INTRODUCTION:
AVR-IO-M16 is small but powerful board, perfect for small automation projects.
The board have four Relays with 10A/250VAC current switching capabilities, four
opto isolated digital inputs and RS232 port. One of our demo software show how
easy is to control the inputs and output by PC compuer through the RS232 port.
BOARD FEATURES:
- ATMega16-16AI
- ICSP 5x2 pin connector for in-circuit programming with AVR-PG1, AVR-PG2,
AVR-ISP500, AVR-ISP500-TINY, AVR-ISP500-ISO or other compatible to 10 pin
ICSP layout
- JTAG 5x2 pin connector for in-circuit programming with AVR-JTAG, AVR-JTAG-USB
or other compatible to 10 pin JTAG layout
- status LED
- reset IC ZM33064
- Quartz crystall oscilator circuit 16MHz
- Voltage regulator +5V, 7805 and filtering capacitors
- Power plug-in jack
- RS232 DB9 female connector , RS232 and interface circuit with Tx, Rx signals
- 4 optocoupler isolated inputs with screw terminals
- input status LEDs
- 4 relay outputs with 5A/250VAC contacts with screw terminals
- output status LEDs
- four mounting holes 3.3 mm (0.13")
- FR-4, 1.5 mm (0.062"), green soldermask, white silkscreen component print
- dimensions 80x100 mm (3.9 x 3.15")
DOCUMENTS:
HARDWARE:
SOFTWARE:
PROJECTS/REVIEW:
ORDERING CODES:
AVR-IO-M16 completely assembled and tested with ATMega16 microcontroller
