AVR-H128CAN is inexpensive way to develop and prototype circuits with AT90CAN128 without need to deal with SMD soldering. All microcontroller pins are available on extension header with 0.1" and power supply, oscillators, ICSP, JTAG are wired, so all you need to do is to connect your additional components to the AVR ports, as the step is 0.1" these headers perfectly fit the prototype sea of pad boards with 0.1" step.

FEATURES

• AT90CAN128-16AU microcontroller with 128KB Flash, 4KB RAM, 4KB EEPROM, CAN controller
• ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2 or STK500 compatible programmer
• JTAG 5x2 pin connector for in-circuit debugging with AVR-JTAG-L or AVR-JTAG-USB
• 16MHz scillator circuit
• 32768 Hz oscillator circuit
• Reset IC ZM33064
• +5V voltage regulator LM78L05
• power supply filtering capacitors
• extension pin headers for each uC pin
• FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print

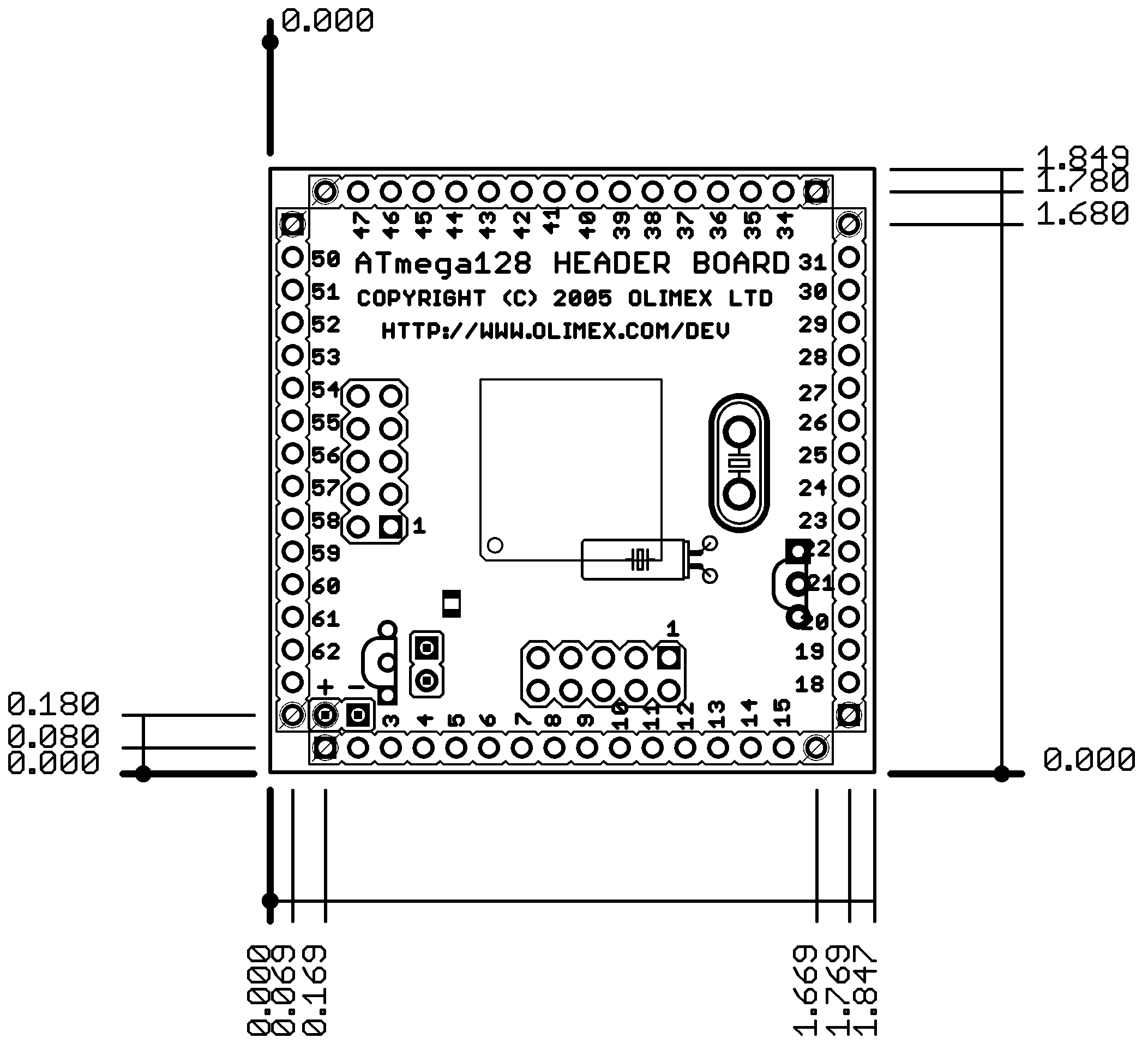

• dimensions 47x47 mm (1.85x1.85")

DOCUMENTS:

• AVR-H128CAN.pdf users manual

HARDWARE:

• AVR-128CAN schematic
• AVR ICSP connector (top view)

SOFTWARE:

• Blinking LED C source for WinAVR
• UART initialization C source for WinAVR

ORDERING CODES:
		AVR-H128CAN - assembled and tested board, includes AT90CAN128-16 microcontroller
