INFO:

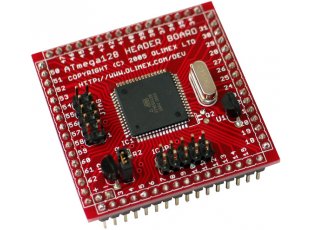

AVR-H128 is inexpensive way to develop and prototype circuits with ATMEGA128 microcontroller without need to deal with SMD soldering. All microcontroller pins are available on extension header with 0.1" and power supply, oscillators, ICSP, JTAG are wired, so all you need to do is to connect your additional components to the AVR ports, as the step is 0.1" these headers perfectly fit the prototype sea of pad boards with 0.1" step.

FEATURES

• ATMega128-16AU microcontroller with 128 KB Flash, 4KB RAM, 4 KB EEPROM
• ICSP 5x2 pin connector for in-circuit programming with AVR-PG1 or AVR-PG2
• JTAG 5x2 pin connector for in-circuit debugging with AVR-JTAG or AVR-JTAG-USB
• 16MHz scillator circuit
• 32768 Hz oscillator circuit
• Reset IC ZM33064
• +5V voltage regulator LM78L05
• power supply filtering capacitors
• extension pin headers for each uC pin
• FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
• dimensions 47x47 mm (1.85x1.85")

DOCUMENTS:

• AVR-H128.pdf users manual
• board dimensions

HARDWARE:

• AVR-H128 schematic
• AVR ICSP connector (top view)

SOFTWARE:

• Blinking LED (C source and HEX)
• UART initialization (C source and HEX)

ORDERING CODES:
		AVR-H128 - assembled and tested board, includes ATMega128-16 microcontroller
		AVR-H128/PCB - board without components
