ARM-JTAG-EW HIGH SPEED ARM USB JTAG WITH TARGET POWER CONSUMPTION MONITORING AND EXTERNAL HARDWARE BREAKPOINT TRIGGERS

INFO:

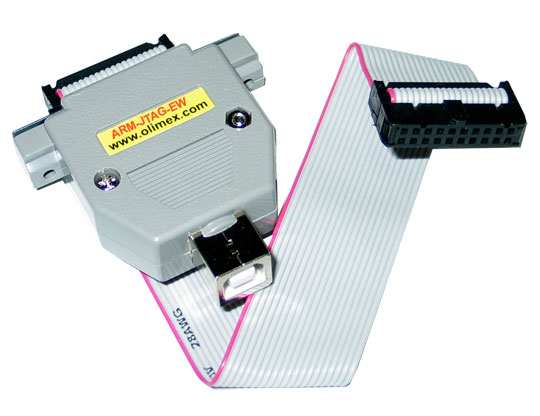

ARM-JTAG-EW is fast and reliable JTAG programmer / debugger designed to work with EW-ARM, the goal was to not release just yet another fast USB JTAG compatible with Embedded Workbench, but to make low cost JTAG with features available only in the expensive Logic analizers, for this purpose ARM-JTAG-EW offer to the user not only software breakpoints, but also hardware breakpoints - user can stop the code by external triggers which may be the target power consumption, rising/falling edge external signals, analogue signal window value. ARM-JTAG-EW emulates on low level the IAR Systems' J-LINK API so it works like normal J-LINK debugger, but add some unique features which are available only in the very high end and expensive debugger tools on the market.

FEATURES:

• Debug all ARM microcontrollers supported by EW-ARM
• Fast speed USB 2.0 JTAG dongle interface, can be used with all ARM7 and CortexM0 and CortexM3 devices for programming and debugging, ARM9 and MIPS support are planned to be add in future.
• can power on/off target with +5VDC on ARM connector PIN#19
• monitors the power consumption, you can watch in C-SPY
• you can set breakpoints at power consumption value
• you can set external trigger breakpoints i.e. you can stop your code on rising / falling edge of external hardware signal
• you can set external trigger breakpoint on external analogue value signal i.e. stop my code when the external signal is between 0.85 and 1.25V
• Uses ARM's standard 2x10 pin JTAG connector
• supports ARM targets working in voltage range 2.0– 5.0 V DC
• software supported by EW-ARM
• available support for OpenOCD
• dimensions 50x40 mm (2x1.6") + 20 cm (8") JTAG cable

DOCUMENTS:

• ARM-JTAG-EW.pdf - User manual

HARDWARE:

• ARM JTAG connector (top view)

SOFTWARE:

• ARM-JTAG-EW driver for EW-ARM. The latest driver is arm-jtag-ew-1.0.6.0.zip and supports EW-ARM 6.21, Cortex M0 as JTAG and Cortex M0 serial wire debug is released.


FAQ:

  Q: Can I debug high voltage targets with ARM-JTAG-EW ?
  A: ARM-JTAG-EW is not isolated, but you can use USB-ISO isolator device to protect your PC while debugging high voltage targets.

  Q: What is the difference between ARM-JTAG-EW and other JTAGs you have?
  A: ARM-JTAG-EW is developed to work only with IAR EW-ARM it's faster than other JTAGs like ARM-USB-OCD-H and ARM-USB-TINY-H etc but limited for use only with IAR expensive compiler. From release 6.XX IAR EW-ARM also support GDB server and you can work with it with the less expensive ARM-USB-OCD-H and ARM-USB-TINY-H which also support Rowley Cross Works and the complete free GCC+OpenOCD, so it make sense to buy ARM-JTAG-EW only if you have big programs which require faster programming with EW-ARM.


ORDERING CODES:
		ARM-JTAG-EW Completely assembled and tested
