iMX8MP-SOM-EVB-IND

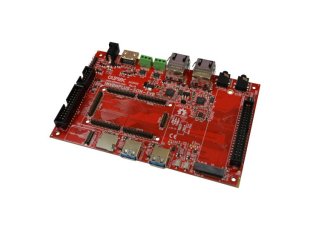

iMX8MP-SOM-EVB-IND - Open Source Hardware Board
iMX8MP-SOM-EVB-IND - Open Source Hardware Board iMX8MP-SOM-EVB-IND - Open Source Hardware Board iMX8MP-SOM-EVB-IND - Open Source Hardware Board
iMX8MP-SOM evaluation board with two Gigabit Ethernet, PCIe, two CAN FD, HDMI, USB3, SD card, Audio, Flash module connector
Price50.00 EUR
In Stock

iMX8MP-SOM-EVB-IND is OSHW certified Open Source Hardware with UID BG000137

Evaluation board for iMX8M plus System-On-Module with two Gigabit Ethernet interfaces (one with TSN), HDMI, two CAN FD, two USB 3 hosts, SD card, flash module connector, PCIe 3.0, microphone connectior, headphone connector, and many GPIOs.

Imporant! This is an expansion board, it requires iMX8MP-SOM-4GB-IND to operate.

FEATURES

  • iMX8MP-SOM matching connectors
  • Two Gigabit Ethernet connectors
  • Two CAN transcievers
  • HDMI
  • Power jack 5V
  • UEXT connector
  • Two GPIO connectors
  • Two serial debug uarts (for A53 and M7)
  • Optional ARM JTAG connector
  • Micro SD-card connector
  • Flash module connector
  • USB 3 hosts
  • Headphone 3.5mm connector
  • Microphone 3.5 mm connector
  • Reset button
  • PWR button
  • Boot slide switch
  • Industrial grade temeprature range: (-45+85)C
  • Dimensions: (155 x 102)mm
